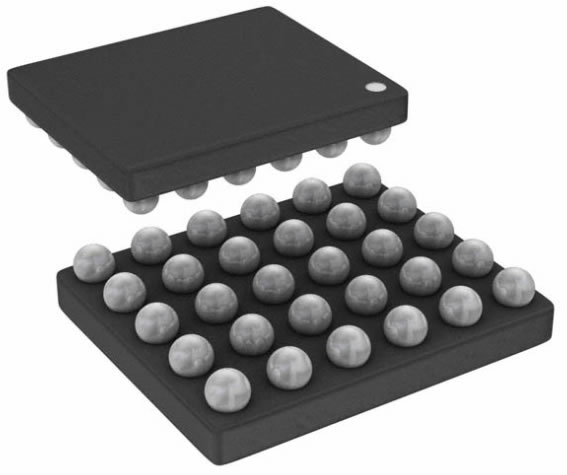

MTX001 MJPEG Compression Processor

MTX001 is an Image Compression Processor that performs the JPEG Baseline Algorithm based on Discrete Cosine Transform, Quantization, and Entropy Encoding. The MTX001 does not use any external memory and is designed to operate without any host intervention. It also includes a Lattice Semiconductor FPGA ICE40UP5K-UWG30 preconfigured with a MJPEG encoder IP.

Features

  • Image Sensor interface
  • Pixel input data 8 bits YUV 4:2:2
  • Pixel clock 25MHz max
  • ITU-R compliant parallel digital video interface timing
  • Host interface is a parallel data interface
  • 8 bits JPEG compressed data
  • 1-bit data enable pulse. Data enable pulse duration equal to period of Pixel clock
  • Selectable 4 compression rates
  • No external memory
  • No programming required
  • Image resolution 4K, 2K, VGA
  • Package 2.5mm x 2.1 mm 30-Ball WLSC
  • Customizable

Targeted Applications

The MTX001 is designed for products that record video. Some examples are:

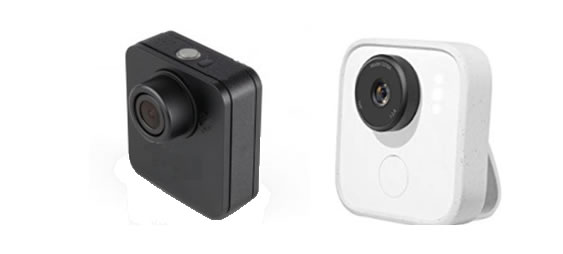

SMALL ACTION CAMERAS

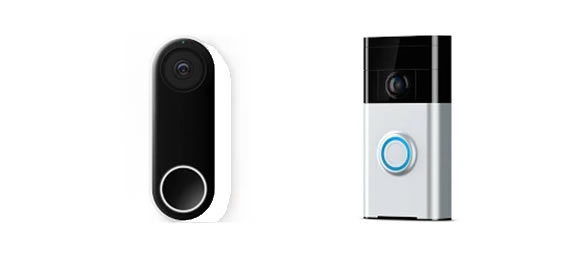

WIRELESS DOORBELLS

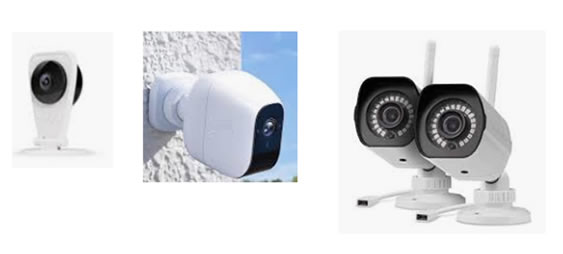

SURVEILLANCE CAMERAS

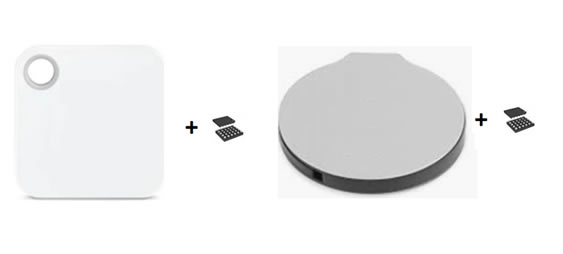

MTX001’s small size allows room for supplemental video recording in tracking devices. For example

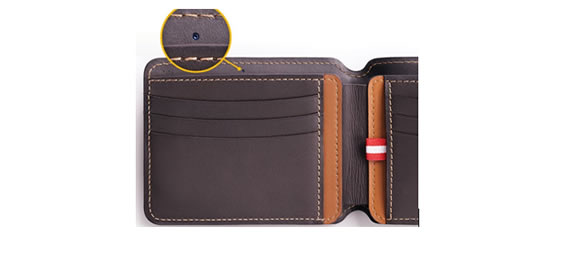

SMART WALLETS WITH CAMERA

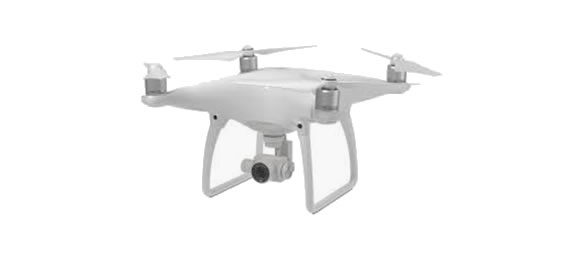

DRONE CAMERA
